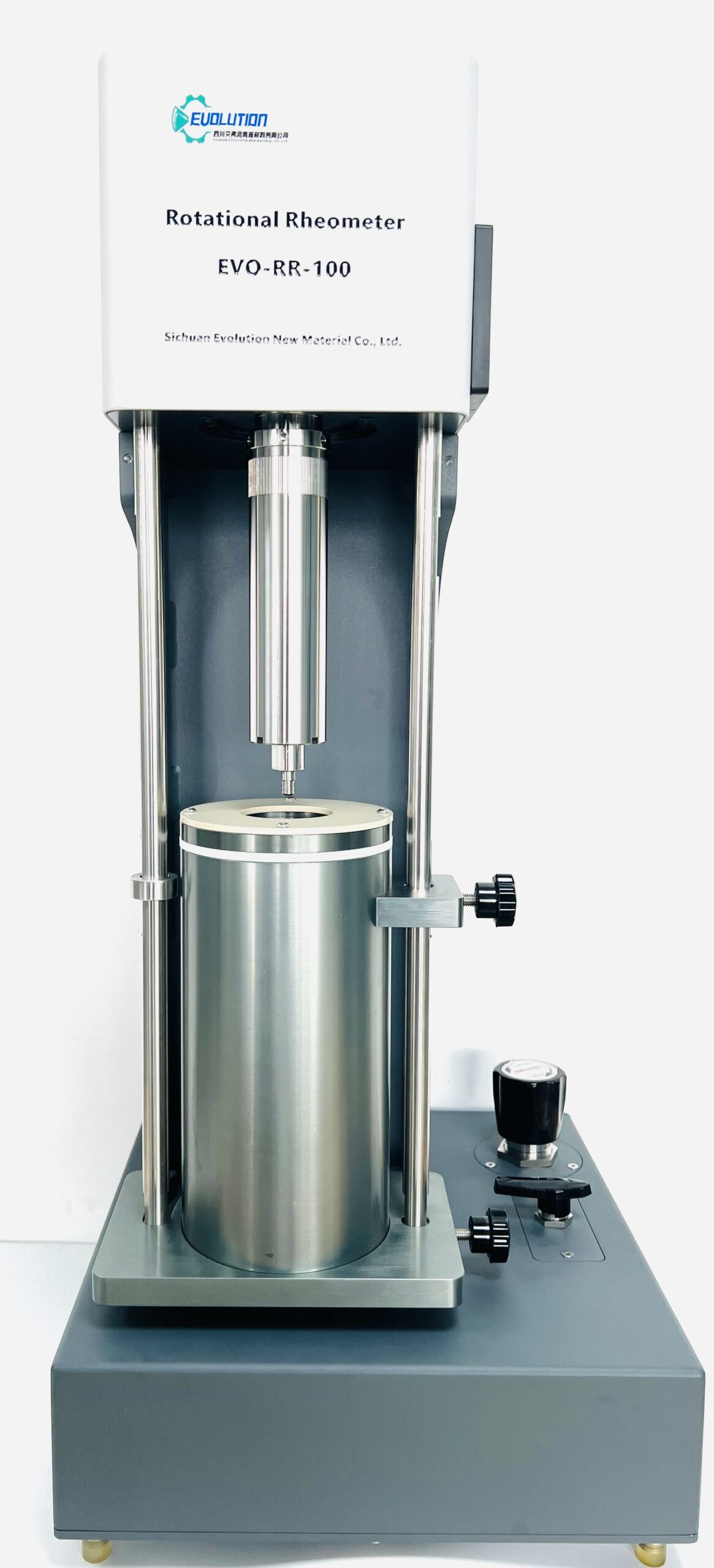

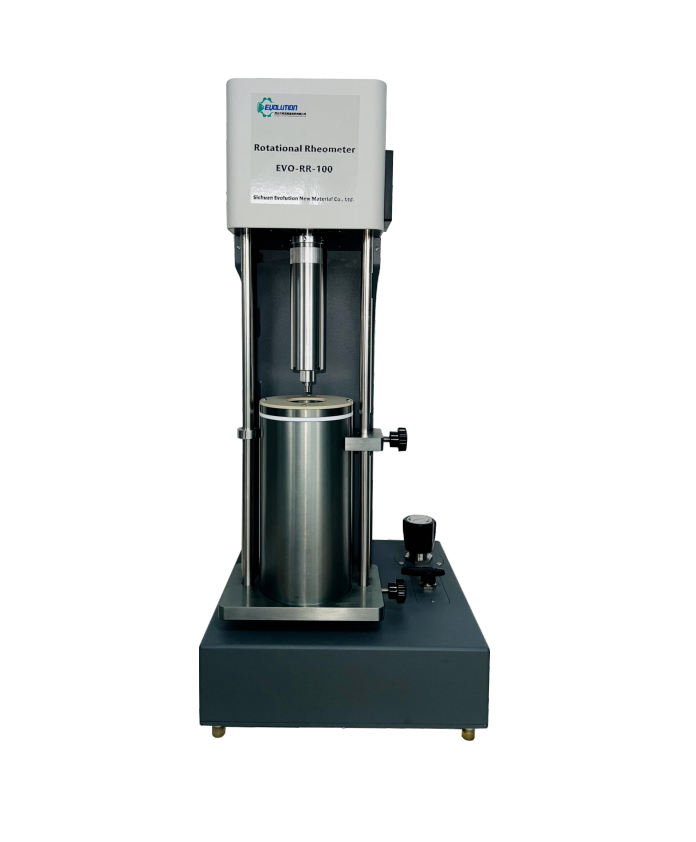

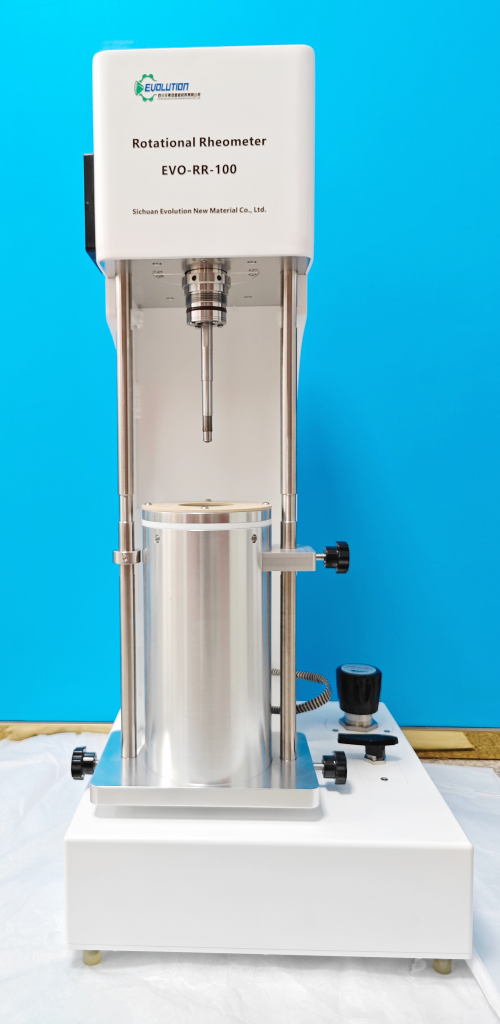

A rotational rheometer is one of the instruments used to study and measure the rheological properties of materials. It applies forced steady-state rate load, steady-state stress load, dynamic sinusoidal periodic strain load, or dynamic sinusoidal periodic stress load to the sample to observe the response data of the sample to the applied load; By measuring rheological data such as shear rate and shear stress, it is a widely used rheological measuring instrument in the field of materials, which can study the flow and deformation characteristics of samples from low viscosity fluids to high-strength solids.

Pressure Range:ordinary pressure～7Mpa

Temperature range: normal temperature -200 ℃

Speed range: 1-1500 RPM

Sample volume: 32-78 ml

Shear rate: 1 to 1870 sec-1

Shear stress: 1-15000 dyn/cm2

Viscosity range: 0.5 to 5000000 Cp

Torque range: 14 μ N. m to 150 mN. m

Accuracy: 0.01% (full range)

Repetition accuracy:+/-0.05% (full range)
